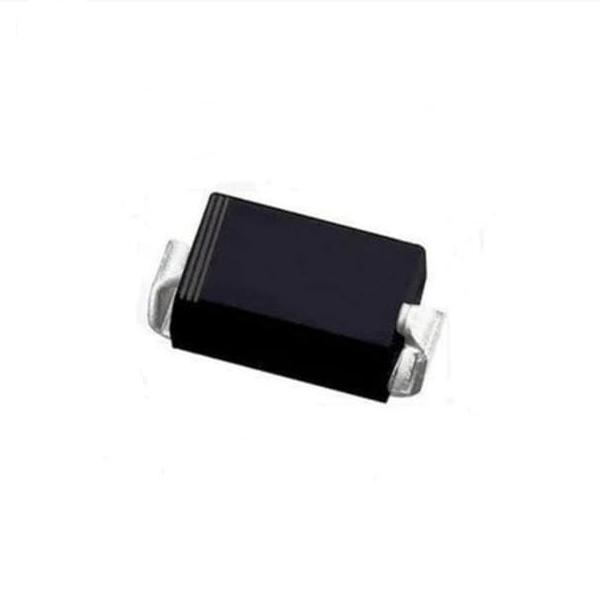

20 pc SS24 Schottky SMD Diode DO-214AC Package

Product Details

• Product Type: Schottky diode
• Series: SS24
• Mounting type: surface mounting device (SMD)
• Configuration: single
• Dimension: 2.45mm x 4.75mm x 3.95mm
• Weight: approximately 95mg
• Package contains: 20 x SS24 Schottky SMD Diode

Features

Suitable for automated handling

Compact package with J-bend leads

Guarding for over-voltage protection

Highly stable oxide passivated junction

Low forward voltage drop

Low power loss and high efficiency

Low profile package

High surge capability

LExtremely low thermal resistance

Electrical Specification

Peak repetitive reverse voltage: 40V

Working RMS voltage: 28V

Maximum DC blocking voltage: 40V

Forward voltage: 0.5V

Forward current: 2A

Average forward rectified current: 2A

Peak forward surge current: 50A

Non-repetitive peak surge current: 75A

Reverse current: 400�A

Operating and storage temperature range: -55? to +150?

Mechanical Specification

Case: DO-214AC (SMD)

Case material: molded epoxy

UL flammability classification rating: 94V-0

Soldering temperature on lead and mounting surface: 260? for maximum 10s

Polarity: Color band denotes cathode end

Finish: all external surface corrosion resistant and terminal leads are readily solderable

ESD ratings:

Machine model: C

Human body model: 3B

Mounting position: any
