AH49E Linear Hall Effect Sensor 49E Hall Element

Product specification

• Product type: 49E Hall effect sensor
• Number of pins: 3

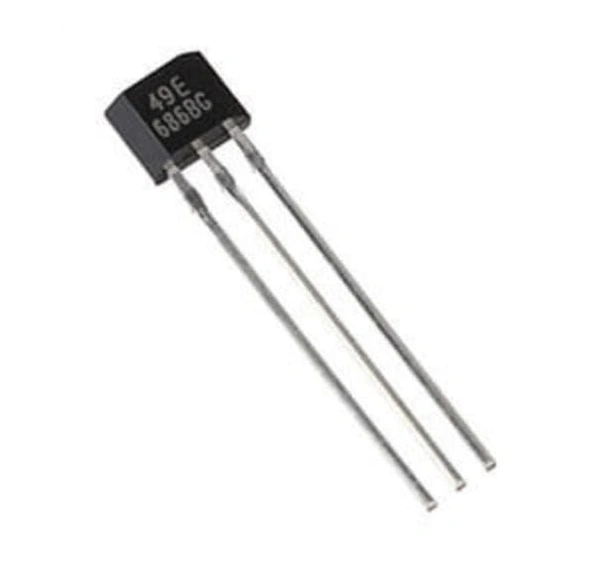

• Colour and shape: as shown in image
• Miniature construction
• Package contains: 1 X AH49E hall effect sensor

49E is a Linear Hall-Effect sensor with a small size and economical price. Hall effect devices are operated by a magnetic field from an electromagnet or a permanent magnet. The user must set souring output voltage by supply voltage. The output voltage varies in proportion to the strength of the magnetic field.

Specification

       Operating Supply Current: 3.5 mA

       Maximum Output Current: 10 mA

Operating Supply Voltage: 3 V to 6.5 V

Minimum Operating Temperature: ? 40 C

Maximum Operating Temperature: + 85 C

Mounting Style: Through Hole

 Package/Case: TO-92S-3

Output Voltage: 2.5 V

Sensitivity: 1.6 mV/GS

Termination Style: Through Hole

Supply Voltage ? Max: 6.5 V

Supply Voltage ? Min: 3 V

Unit Weight: 100 mg

Application:

Current Sensing

 Motor Control

Position Sensing

Magnetic Code Reading

Ferrous Metal Detector

Vibration Sensing

Liquid Level Sensing

Weight Sensing
