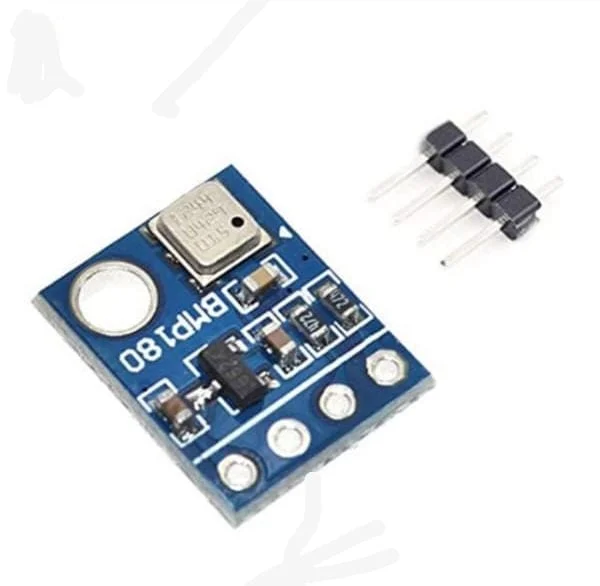

BMP180 Barometric Pressure Sensor Module
₹ 149
Delivery Options
Get delivery at your doorstep
Product Not Available
Product Details
- Sensor type: BMP180 barometric pressure sensor
- No of Pins: 5
- Header: not soldered
- Colour: blue
- Dimension: 3.6mm x 3.8mm x 0.93mm
- Weight: 5g
- Package contains: 1 x BMP180 pressure sensor module.
The BMP180 is the new digital barometric pressure sensor of Bosch Sensortec with a very high performance which enables applications in advanced mobile devices such as smartphones tablet PCs and sports devices. It follows the BMP085 and brings many improvements like the smaller size and the expansion of digital interfaces.
Specification
Operating Voltage:1.3V to 3.6V
Voltage supply: 3.3V to 5v
Current supply: 5�A at 1Hz
Peak current: 1000�A
Communication: I2Cinterface
Max I2C Speed: 3.4Mhz
Pressure conversion time: 5msec
Very low noise: up to 0.02hPa (17cm)
Pressure Range: 300hPa to 1100hPa (+9000m to -500m)
Pin Description
Vcc
Gnd
SCL
SDA
3.3V
Application
GPS navigation enhancement
Sport devices
Navigation system
Computers and peripheral
Weather forecast
Vertical velocity indicator
DIY project where barometric pressure measurement is needed
