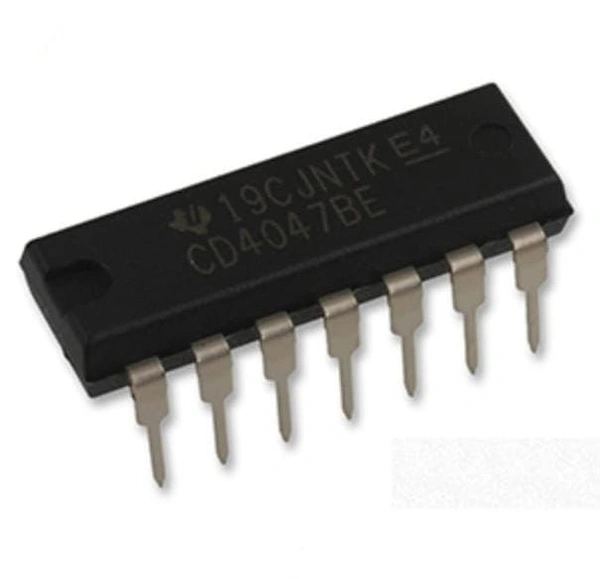

CD4047BE 4047 Monostable / Astable Multi vibrator IC

Product Details

• IC Number: CD4047
• Function: Multivibrator
• Technology: CMOS
• Pin counts: 14
• Mounting type: through hole
• Package: PDIP-14

CD4047 is a CMOS multivibrator and works in both monostable and astable mode. the IC has a wide range of applications Including pulse clock generation sine wave generation conversion of DC signal to AC signal and many more.

Features

Wide voltage supply range

Low power consumption

Both Monostable (one-shot) and Astable (free-running) operation mode

Buffered inputs

Only one resistor and capacitor is required as an external component to determine the output pulse width

High noise immunity

Monostable Features

Positive and negative edge triggered

Retriggered option for pulse width expansion

Output pulse width independent of trigger pulse operation

Internal power-on reset circuit

Astable Features

Free-running or getable operating mode

50% duty cycle

Oscillator output available

Good Astable frequency ability

Specification

Voltage supply: -0.5V to +20V

Input voltage range (all inputs): -0.5V to +0.5V

DC input Current (anyone input): �10mA

Operating temperature range: -55? to +125?

Storage temperature range: -65? to +150?

Application

Envelope detection

Frequency multiplication division and discrimination

Timing circuit

Delay circuit
