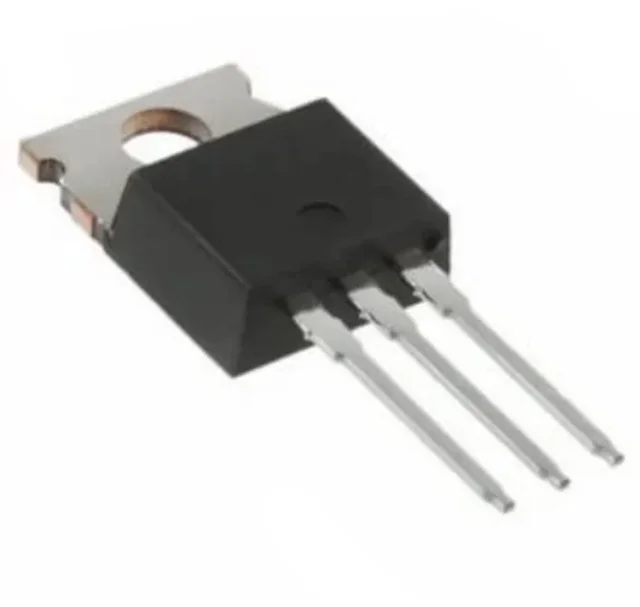

IRF9630 200V 6.5A P-Channel Power MOSFET
₹ 59
Delivery Options
Get delivery at your doorstep
Product Not Available
Product Details
- Product: IRF9630
- Transistor type: MOSFET
- Control channel: P-Channel
- No of pins: 3
- Package: TO-220AB
- Mounting type: through hole
- Package contains: 1 x IRF9630 200V 6.5A P-Channel Power MOSFET
Features
Dynamic dv/dt capability
Advanced process technology
Repetitive avalanche rated
Fast switching
Ease of paralleling
Simple drive requirement
Specification
Drain-source voltage: -200V
Drain-gate voltage: -200V
Gate-source voltage: �20V
Continuous drain current:
At 25?: -6.5A
At 100?: -4A
Pulsed drain current: -26A
Maximum avalanche current: -6.4A
Gate threshold voltage: -2V to -4V
Drain-to-source leakage current: -100�A
Gate-to-source forward leakage: 100nA
Gate-to-source reverse leakage: -100nA
Rise time: 27nS
Fall time: 24nS
Turn-on delay time: 12nS
Turn-off delay time: 28nS
Diode forward voltage: -6.5V
Reverse recovery time: 200ns to 300ns
Reverse recovery charge: 1.9�C to 2.9�C
Maximum power dissipation: 74W
Operating temperature: -55? to 150?
