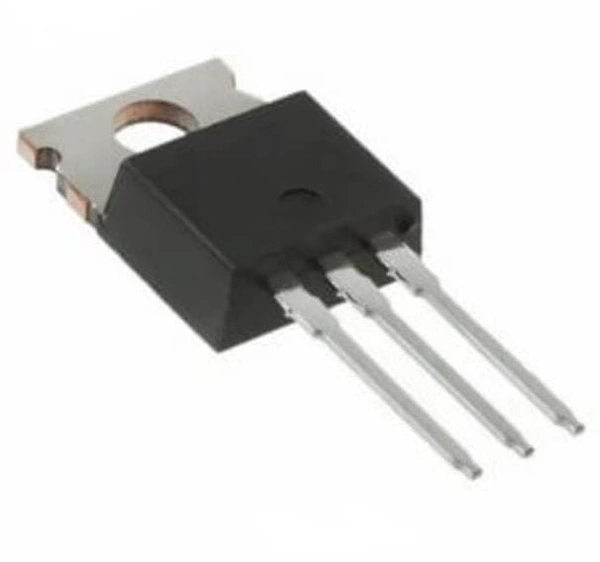

IRF9Z34 60V 18A P-Channel Power MOSFET
₹ 69
Delivery Options
Get delivery at your doorstep
Product Not Available
Product Details
- Product: IRF9Z34
- Transistor type: MOSFET
- Control channel: P-Channel
- No of pins: 3
- Package: TO-220
- Mounting type: through hole
- Package contains: 1 x IRF9Z34 60V 18A P-Channel Power MOSFET
Features
Dynamic dv/dt capability
Advanced process technology
Fully avalanche rated
Fast switching
175? operating temperature
Specification
Drain-source voltage: -55V
Drain-gate voltage: -55V
Gate-source voltage: �20V
Continuous drain current:
At 25?: -19A
At 100?: -14A
Pulsed drain current: -68
Maximum avalanche current: -10A
Gate threshold voltage: -2V to -4V
Drain-to-source leakage current: -25�A
Gate-to-source forward leakage: 100nA
Gate-to-source reverse leakage: -100nA
Rise time: 55nS
Fall time: 41nS
Turn-on delay time: 13nS
Turn-off delay time: 30nS
Diode forward voltage: -1.6V
Reverse recovery time: 54ns to 82ns
Reverse recovery charge: 110nC to 160nC
Maximum power dissipation: 68W
Operating temperature: -55? to 175?
