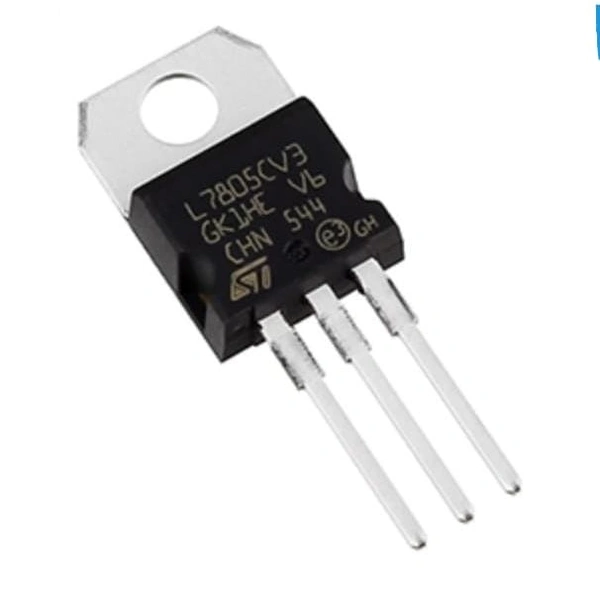

LM7805 7805 IC 5V Voltage Regulator IC
₹ 14
Delivery Options
Get delivery at your doorstep
Product Not Available
IC 7805 is a member of the 78xx series of the fixed linear voltage regulator IC. This regulator IC gives a constant output of 5v and input can be up to 24v (min. 7v). 7805 is so popular among all the voltage regulator IC because 5v is a basic voltage supply for most of the electronics circuit and getting a battery of exactly 5v is not that easy.
Specification
Input voltage: 7v to 25v
Output voltage range: 4.8 v to 5.2v
Typical output voltage: 5v
Maximum output current: 1.5A
Pin Description
Input (7v to 25v)
Gnd
Out (5V)
Instructions
Use a capacitor to minimize voltage fluctuation
Use heat sink to avoid damage because of heat
Product Details:
IC Number | LM7805 |
IC Function | converts any voltage to 5 Volts |
Number of Pins | 3 |
Pin type | through hole |
Package | TO-220 |
Package contains | 1 x LM7805 Voltage Regulator IC |
