TowerPro MG996R (180 Degree) Servo Digital

Product Specifications

• Motor type: servo motor
• Model: MG996R
• Brand: TowerPro
• Gears type: metal
• Dimensions: 40.7mm X 19.7mm x 42.9mm
• Weight: 55g
• Colour: Black

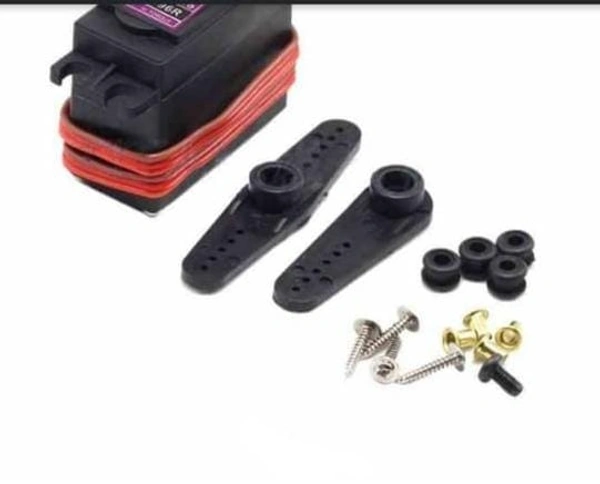

• Package contains: I unit of tested and brand new MG996R servo motor. This servo package has Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum etc with 30 cm wire and s type female header connector

MG996R is a high torque digital servo motor that has metal gears which results in extra 10kg stalling torque in a small package. MG996R is an upgraded version of MG995. It has some extra features like shock-proofing redesigned PCB and IC control system.

Specification

Operating voltage: 4.8V to 7.2V

Stall current: 2.5A at 6V

Running current: 500mA-900mA at 6V

Stall torque:

4 KG-cm at 4.8V

11 KG-cm at 7.2V

Rotation: Dual Bearing

Temperature range: 0 �C-55 �C

Operating speed:

19 sec/60� at 4.8V

15 sec/60� at 7.2V

Modulation: Digital

Stable and shock proof
