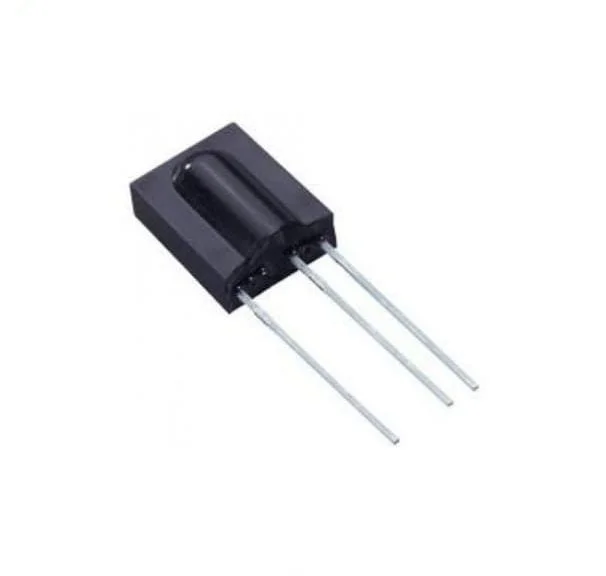

TSOP1738 IR Receiver for Arduino IR Remote Control
₹ 59
Delivery Options
Get delivery at your doorstep
Product Not Available
Product specifications
- Product type: TSOP1738
- Sensor type: IR sensor
- Number of pins: 3
- Dimensions: 12.5 x 10 x 5.8 mm
- Weight: 5g
- Colour and shape: as shown in image
- Package contains: 1 x TSOP1738
TSOP sensor a miniaturized receiver for IR (infrared) remote control system. TSOP sensor is consists of a PIN diode and a preamplifier on the lead frame. The epoxy package is designed the same as an IR filter. TSOP is a series of a standard remote-control receiver. The sensor is compatible with controllers and processors. The demodulated output goes to microprocessor or control and gets decoded directly.
Specification:
Voltage supply: 3-5V
Typical voltage supply: 5V
Operating supply: 5mA
Detecting frequency: 38KHz
Detection angle: 90 degree
High range
Wide coverage area
Built-in PIN diode and preamplifier
Respond only IR signal
Low power consumption
